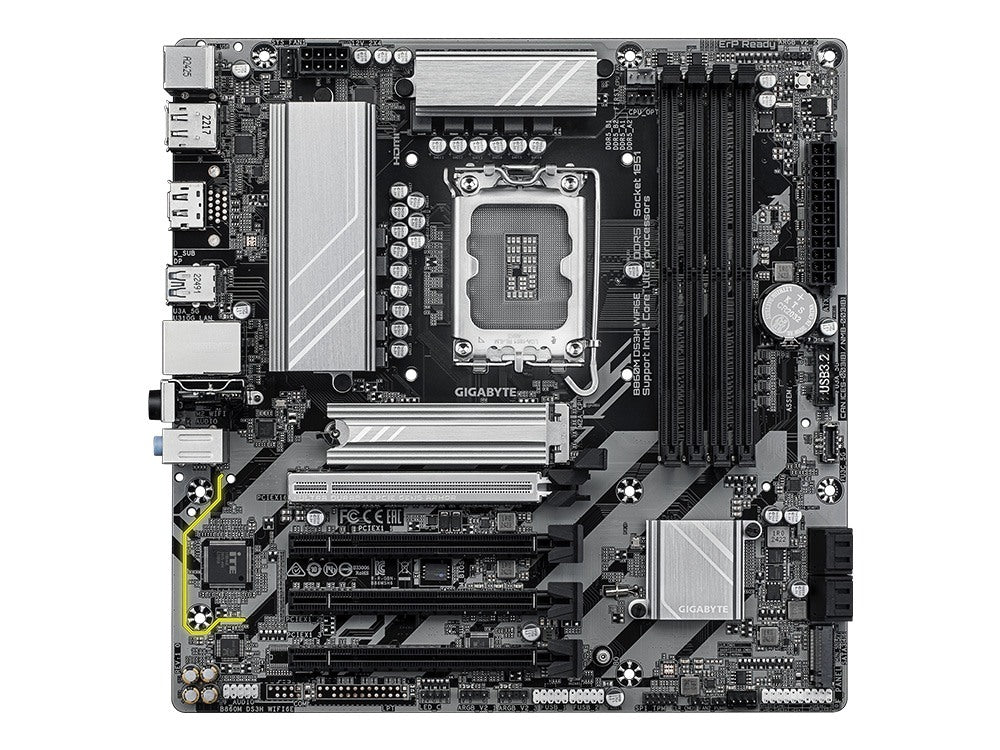

GIGABYTE B860M DS3H WIFI6E LGA1851 m-ATX Motherboard

Build a powerful modern Intel system with the GIGABYTE B860M DS3H WIFI6E. Featuring the Intel B860 chipset and LGA1851 socket, this Micro-ATX motherboard provides a feature-packed foundation for Intel Core Ultra desktop processors.

Four DDR5 memory slots provide support for up to 256GB of system memory, with Intel XMP support allowing compatible high-performance memory kits to operate at their rated overclocked speeds.

For graphics, the primary PCIe x16 slot connects directly to the processor and supports PCIe 5.0 x16, providing plenty of bandwidth for current and future high-performance graphics cards.

Fast storage is covered by two M.2 NVMe slots, including a CPU-connected PCIe 5.0 x4 M.2 slot for next-generation Gen5 NVMe SSDs and an additional PCIe 4.0 x4 M.2 slot. Four SATA 6Gb/s connections are also available for additional SSDs and hard drives.

Built-in Wi-Fi 6E provides fast tri-band 2.4GHz, 5GHz and 6GHz wireless connectivity, while integrated Bluetooth makes it easy to connect compatible wireless peripherals. For wired networking, 2.5 Gigabit Ethernet provides significantly more bandwidth than traditional Gigabit LAN when paired with compatible network equipment.

With modern connectivity, fast networking, PCIe 5.0 support and a compact Micro-ATX form factor, the B860M DS3H WIFI6E is an excellent foundation for Intel Core Ultra gaming PCs and performance desktop systems.

Key Features

• Intel B860 Express chipset

• LGA1851 socket

• Supports compatible Intel Core Ultra desktop processors

• Micro-ATX form factor

• 4x DDR5 memory slots

• Up to 256GB maximum memory capacity

• Intel XMP memory support

• PCIe 5.0 x16 graphics card slot

• PCIe 5.0 x4 M.2 NVMe support

• 2x M.2 NVMe SSD slots

• 4x SATA 6Gb/s connectors

• Integrated Wi-Fi 6E

• Integrated Bluetooth

• Realtek 2.5 Gigabit Ethernet

• HDMI 2.1 and DisplayPort video outputs

• USB 3.2 connectivity

• Internal front USB Type-C header

• Realtek High Definition Audio

• Q-Flash Plus BIOS update support

• Addressable RGB Gen2 headers

• GIGABYTE Control Center support

Specifications

Brand: GIGABYTE
Model: B860M DS3H WIFI6E
Chipset: Intel B860 Express
CPU Socket: LGA1851
CPU Support: Intel Core Ultra Processors
Form Factor: Micro-ATX
Memory Type: DDR5
Memory Slots: 4x DDR5 DIMM
Maximum Memory: 256GB
Memory Architecture: Dual Channel
Memory Overclocking: Intel XMP Support
Primary Expansion Slot: PCIe 5.0 x16
M.2 Slots: 2
Primary M.2: PCIe 5.0 x4/x2
Secondary M.2: PCIe 4.0 x4/x2
SATA: 4x SATA 6Gb/s
LAN: Realtek 2.5GbE
Wireless: Wi-Fi 6E, 2.4GHz / 5GHz / 6GHz
Bluetooth: Integrated
Audio: Realtek High Definition Audio
Display Outputs: HDMI 2.1 and DisplayPort 2.1
BIOS: UEFI BIOS with Q-Flash Plus

Connectivity

The B860M DS3H WIFI6E provides a wide range of internal and external connectivity including USB 3.2, USB 2.0, front-panel USB Type-C, multiple fan and pump headers, addressable RGB Gen2 headers and standard RGB lighting support.

Please Note

Supported memory speeds, wireless hardware, Bluetooth version and certain connectivity features may vary depending on motherboard PCB revision, installed processor and system configuration.

Display outputs require a processor with integrated graphics support.
