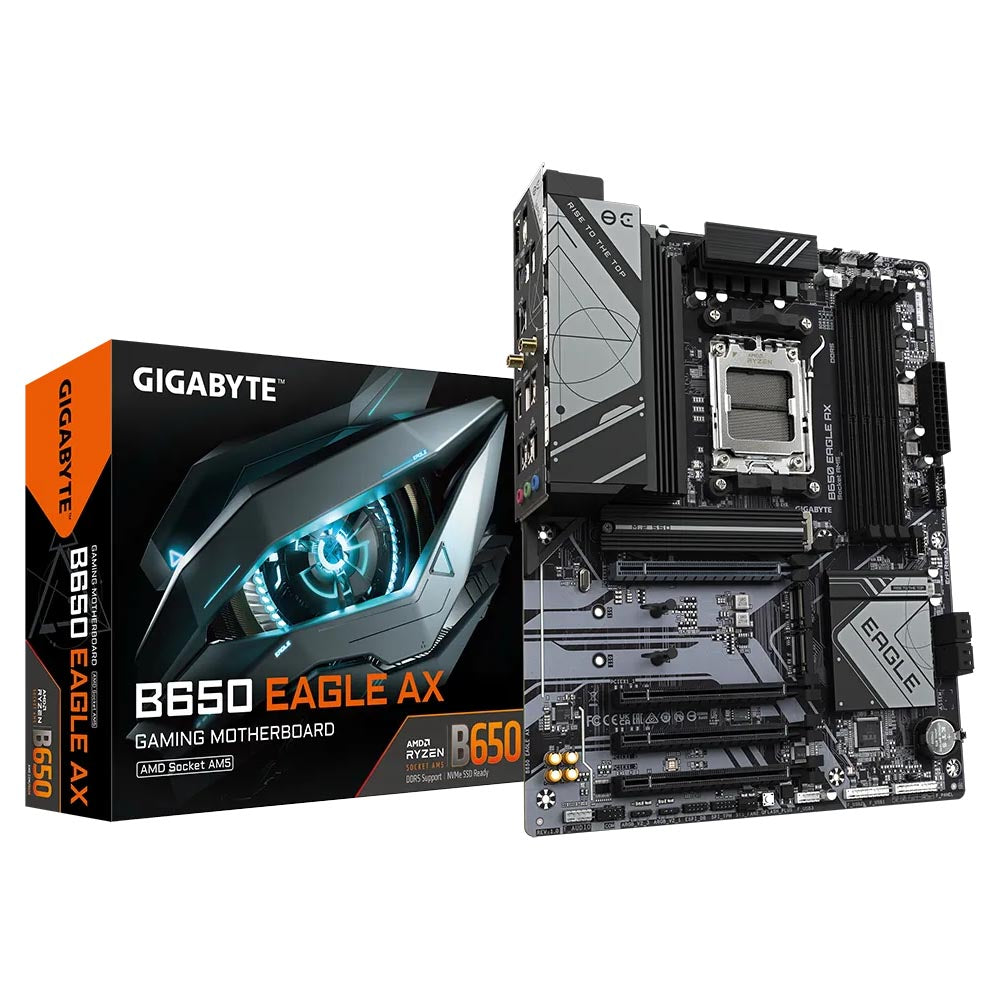

Gigabyte B650 Eagle Ax
Gigabyte B650 Eagle Ax
Regular price
$229.00 AUD
Regular price
Sale price
$229.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
2 in stock
Couldn't load pickup availability
| Model Number | B650-EAGLE-AX |
| CPU |
AMD Socket AM5, Support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics Support: 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160@144 Hz * Support for DisplayPort 1.4 version. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slots |
1 x PCI Express x 16 slot (PCIE x 16), Integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x 16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIE x 16 slot. Chipset: 3 x PCI Express x 16 slots, supporting PCIe 3.0 and running at x 1 * The PCIE x 1_1 and PCIE x 1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. |
| Storage Interface |
1 x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 25110 / 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x 4 / x 2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 4 / x 2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 4 / x 2 SSDs 1 x M.2 Connector (M2P_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 22110 / 2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x 2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x 2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x 4 / x 2 SSD support) (M2C_SB) 4 x SATA 6 Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0 / 1.1 ports on the back pane Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0 / 1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header (D_LED1) 1 x addressable LED strip header (D_LED2) 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6 Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 4 x USB 2.0 / 1.1 ports 1 x PS/2 keyboard / mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5 cm x 24.4 cm |
